Selective Ray Tracer Using Vulkan and CUDA

#C++ #Vulkan #CUDA #Ray Tracing #Shadow Mapping #Deferred Rendering #glTF #Personal Project

Overview

  • Period: September 2024 – December 2024
  • Type: Personal project
  • Objective: Reduce the ray-tracing cost of shadow generation while improving the visual quality of shadow maps.

The renderer performs ray tracing only around boundaries detected in the shadow-map result.

Implementation

  • Used interoperability between the Vulkan and CUDA APIs:
    • Vulkan handled graphics operations.
    • CUDA handled parallel image-processing operations.
  • Applied a parallel Sobel filter in CUDA to a shadow-map texture created by Vulkan.
  • Performed selective ray tracing only on regions identified as edges by the Sobel filter.

Challenge

  • The Sobel filter size and its boundary-detection characteristics prevented the renderer from producing shadows as clean as originally intended.
  • In the tested PC environment, the hybrid rendering approach does not outperform full ray tracing. This is mainly because the test system uses an RTX 4090, which provides very high ray tracing performance for general Whitted-style ray tracing workloads.

Result

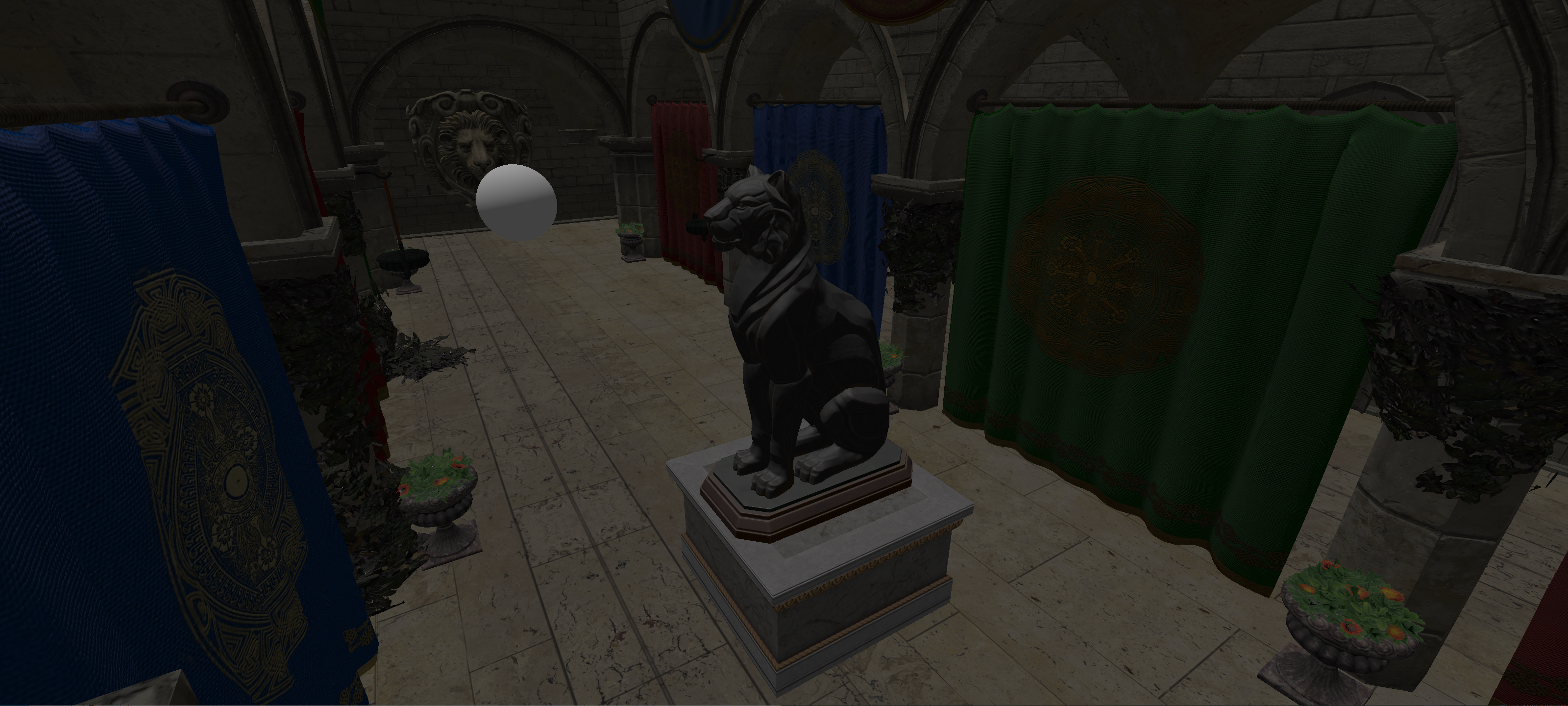

Original Texture: Sponza
Original Texture: Sponza

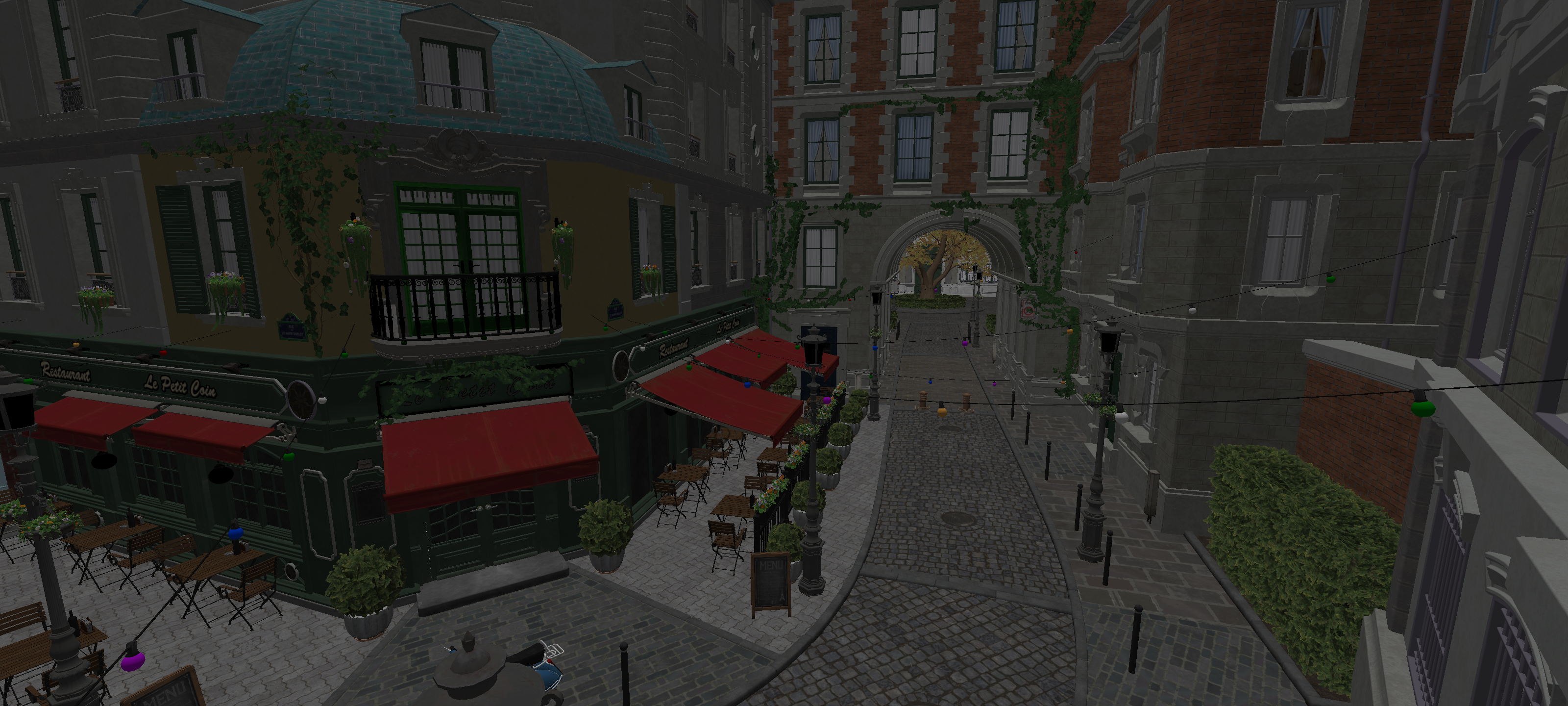

Original Texture: Bistro Exterior
Original Texture: Bistro Exterior

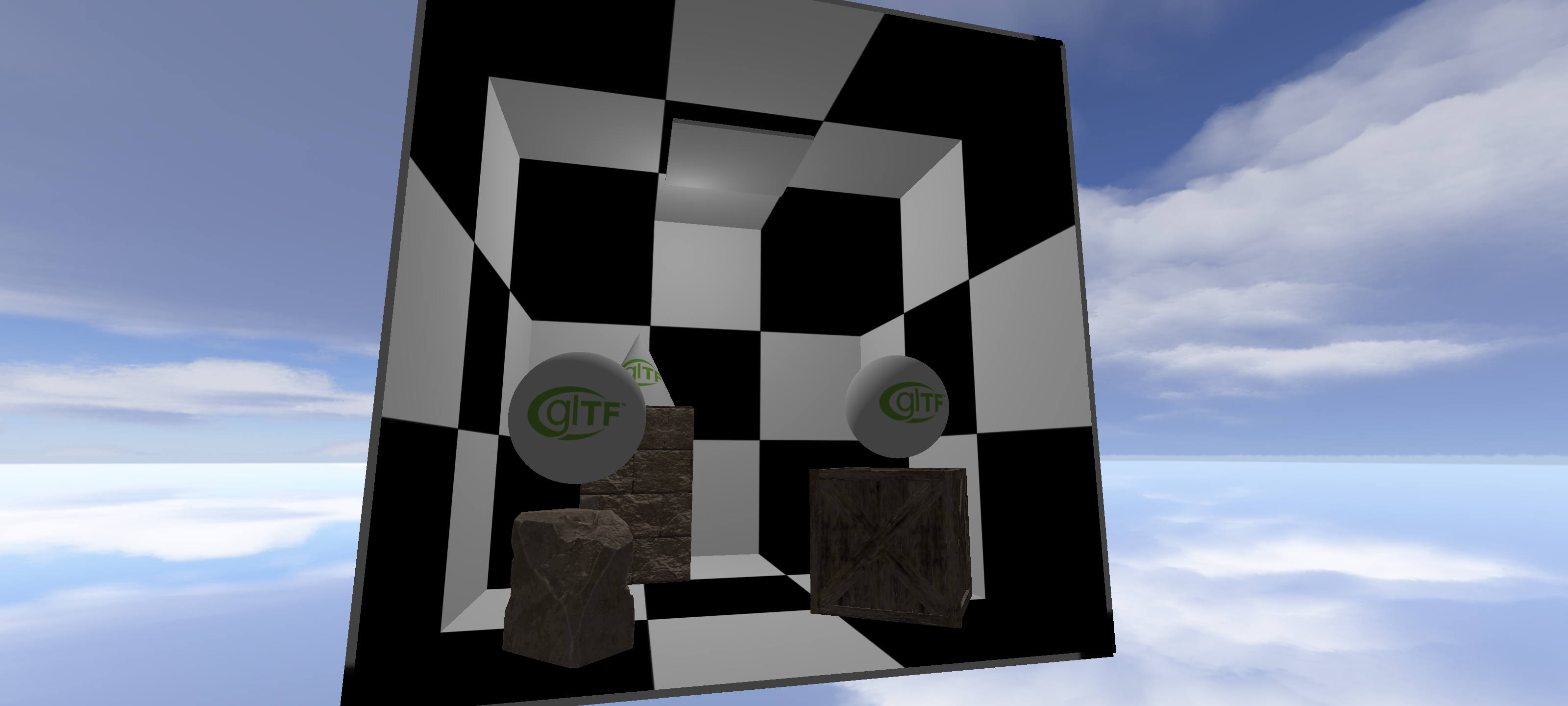

Original Texture: Cornell Box
Original Texture: Cornell Box

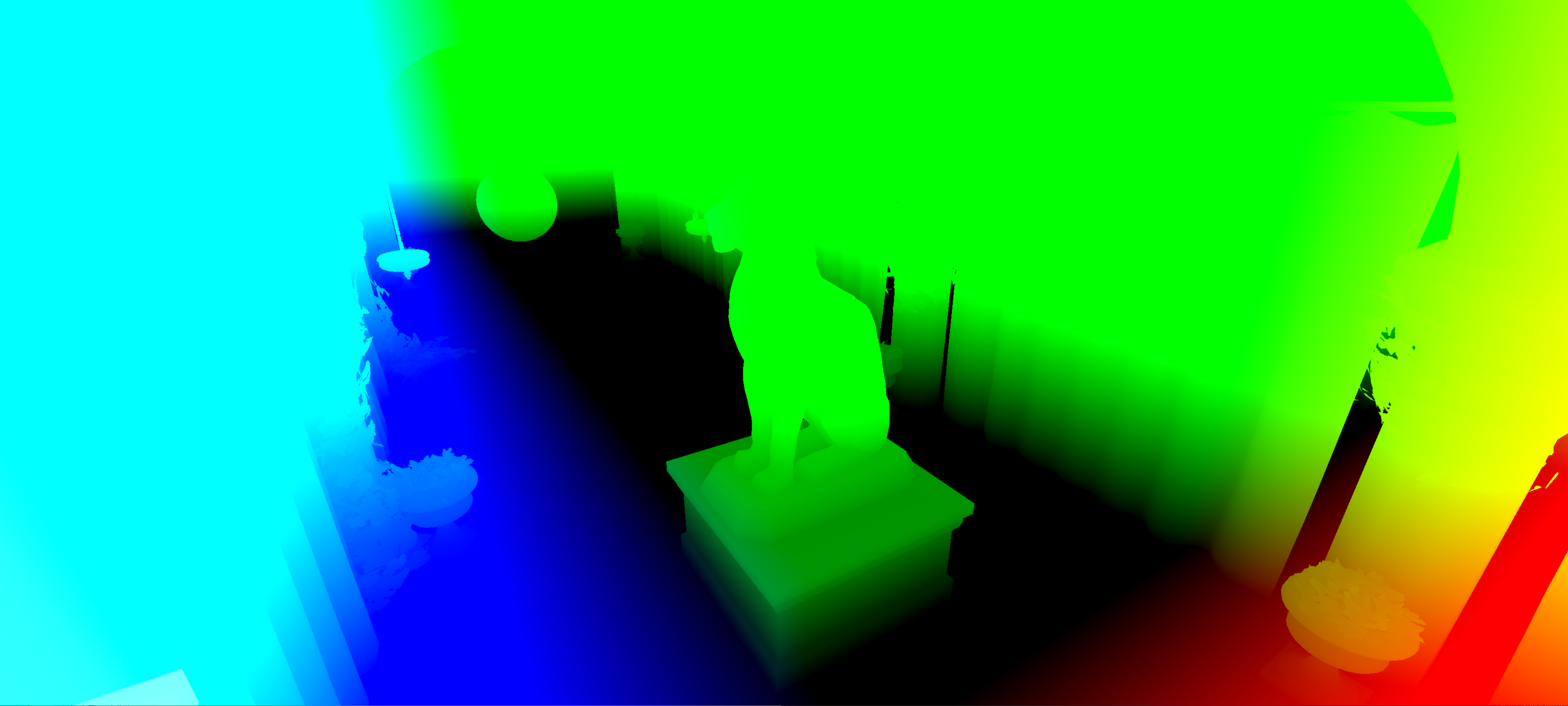

Position Texture: Sponza
Position Texture: Sponza

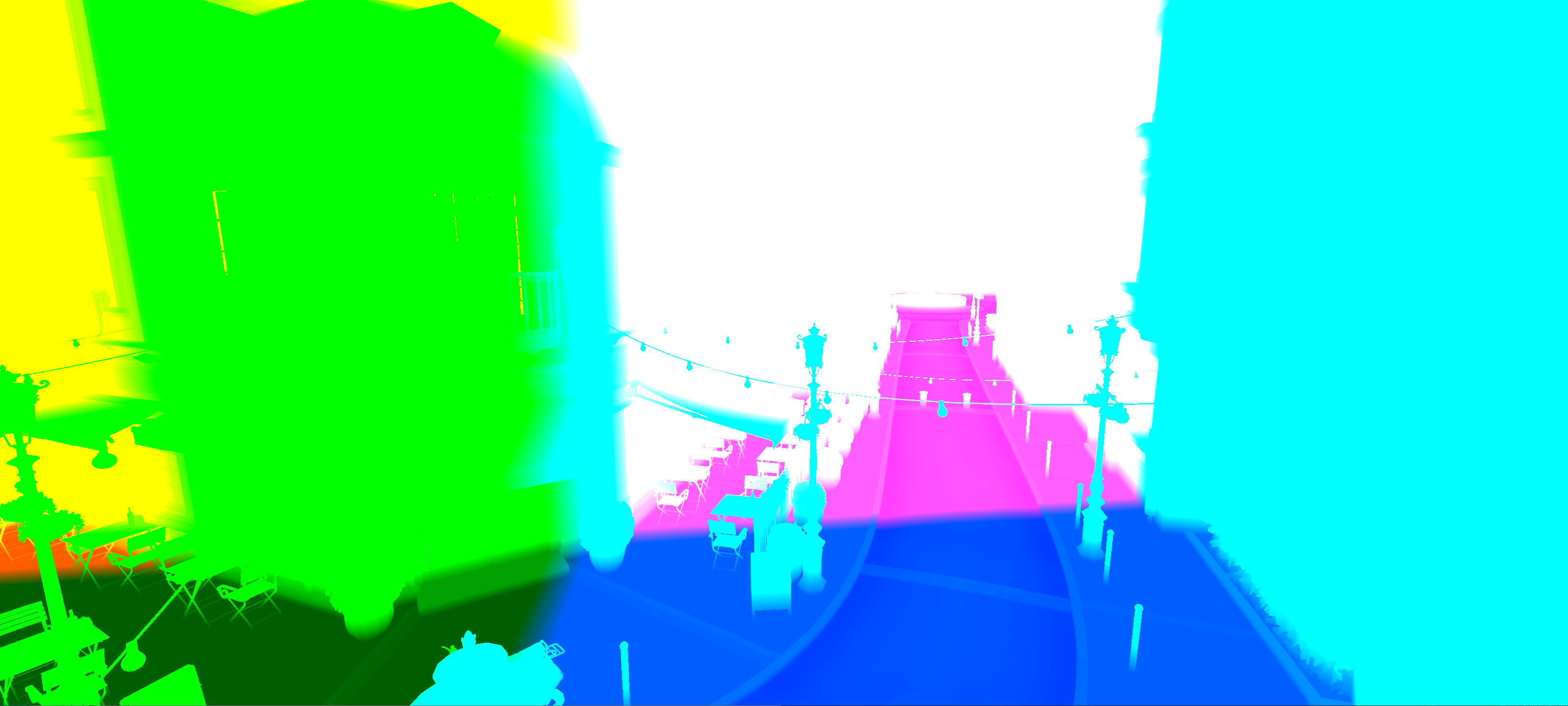

Position Texture: Bistro Exterior
Position Texture: Bistro Exterior

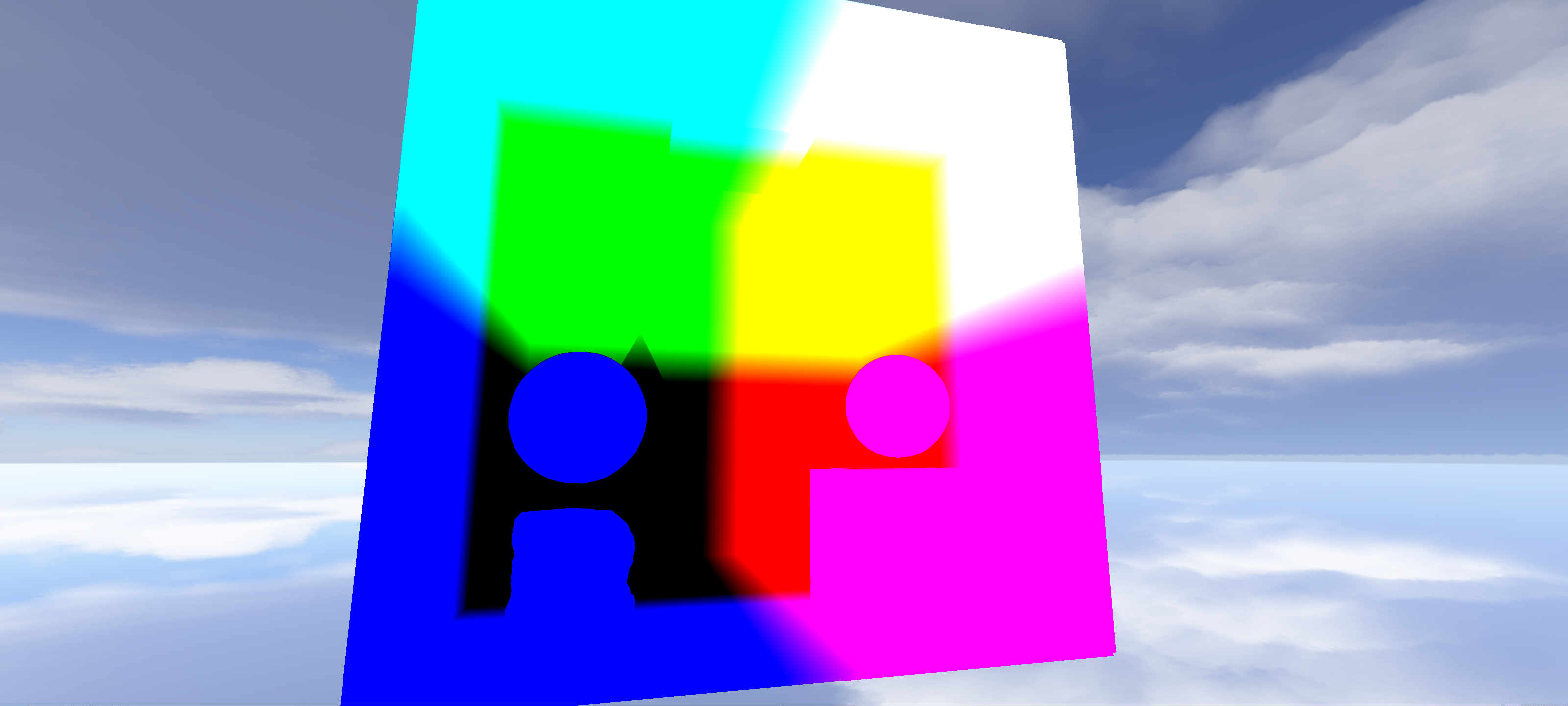

Position Texture: Cornell Box
Position Texture: Cornell Box

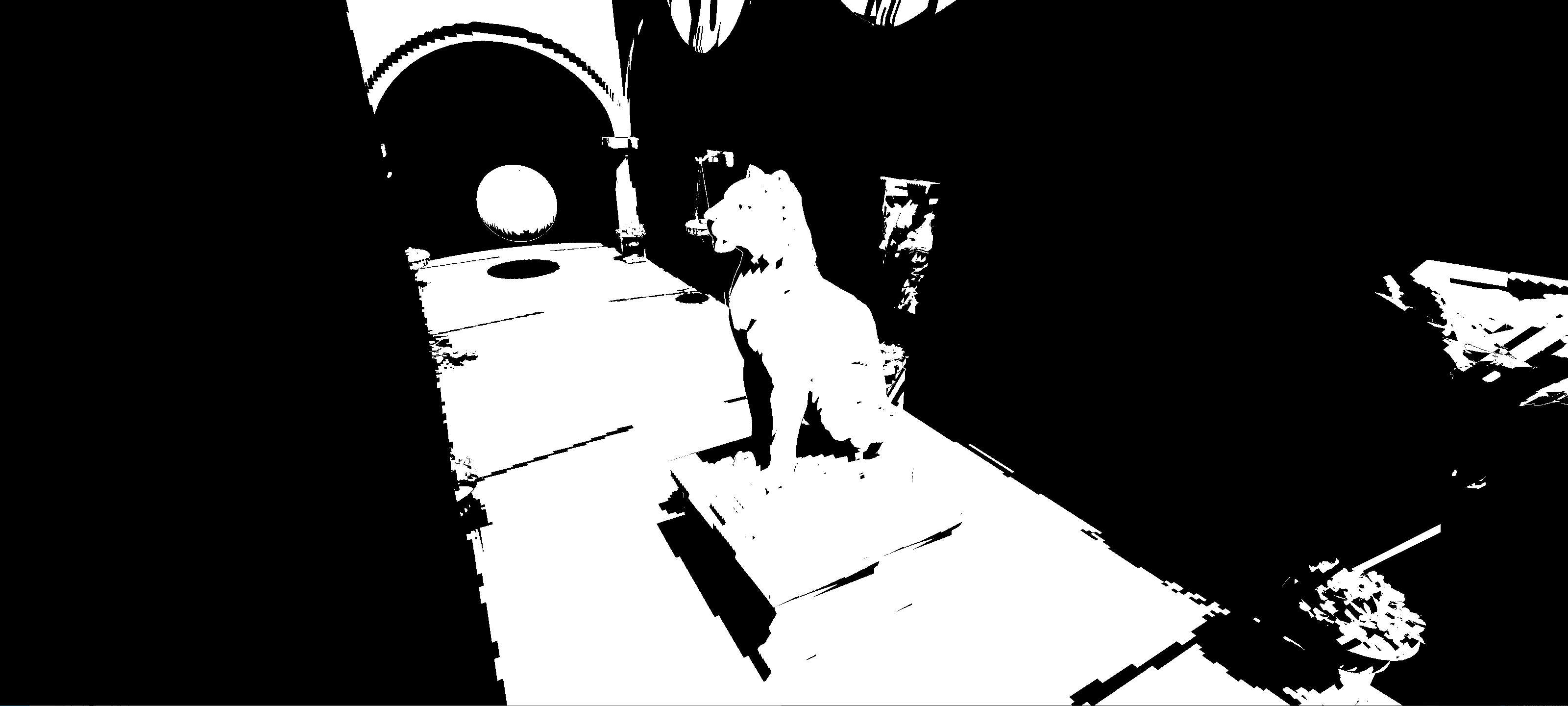

Shadow Texture: Sponza
Shadow Texture: Sponza

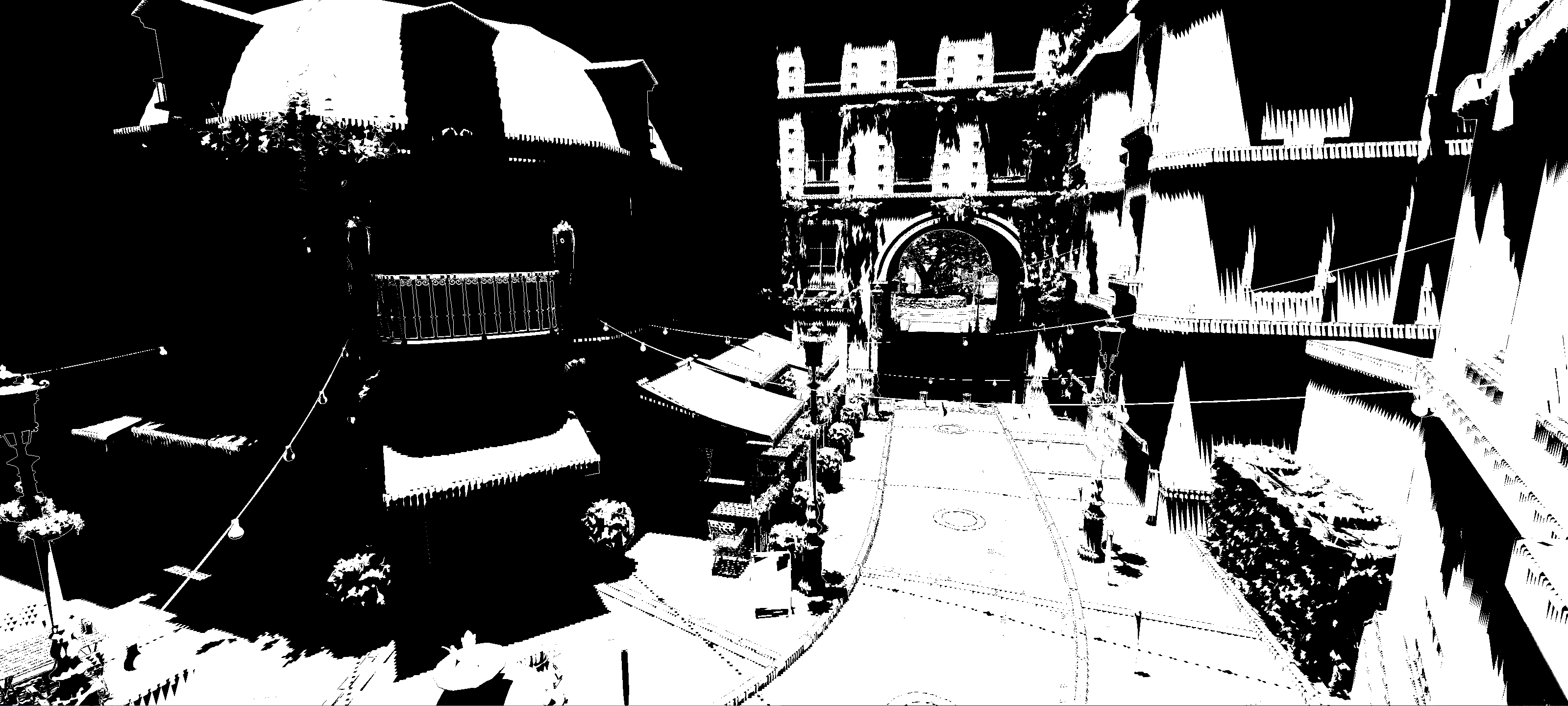

Shadow Texture: Bistro Exterior
Shadow Texture: Bistro Exterior

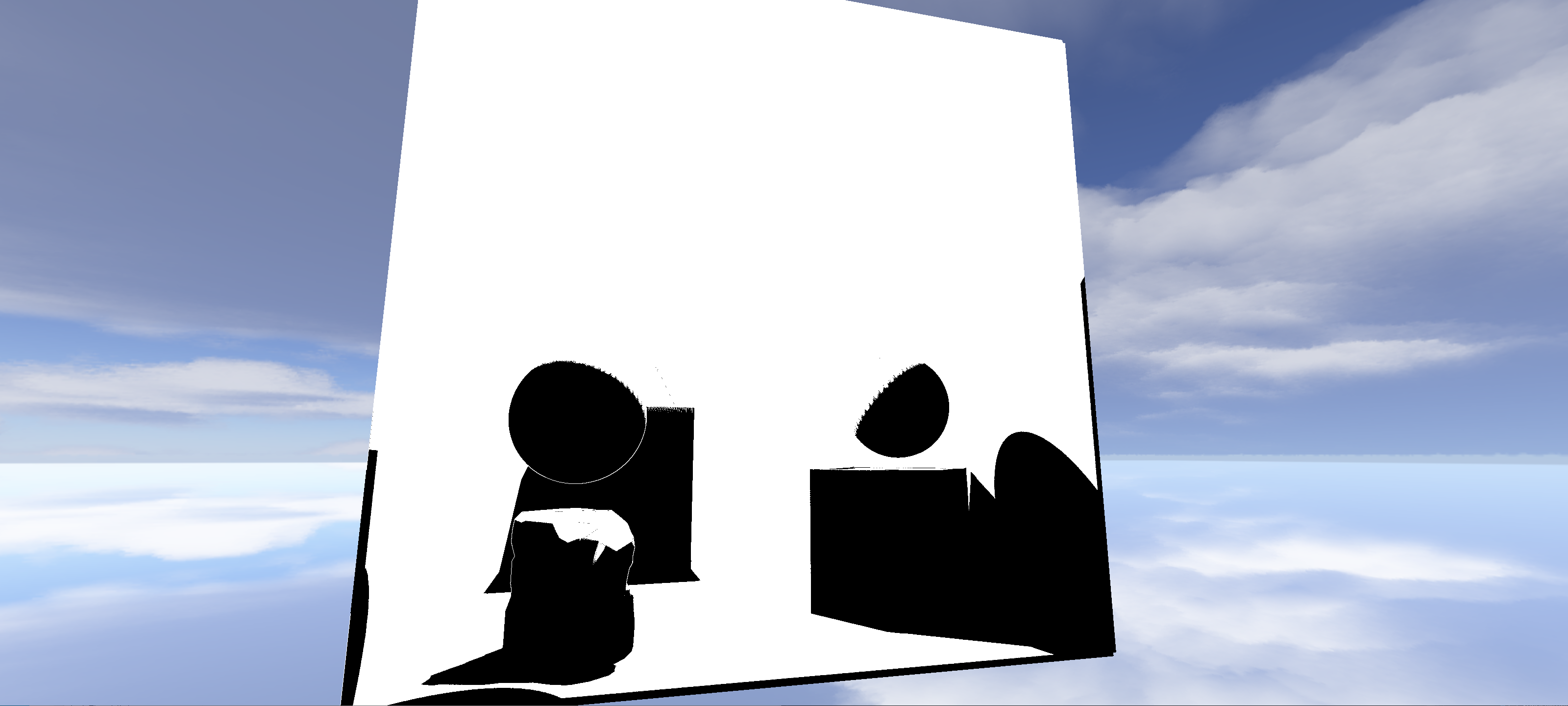

Shadow Texture: Cornell Box
Shadow Texture: Cornell Box

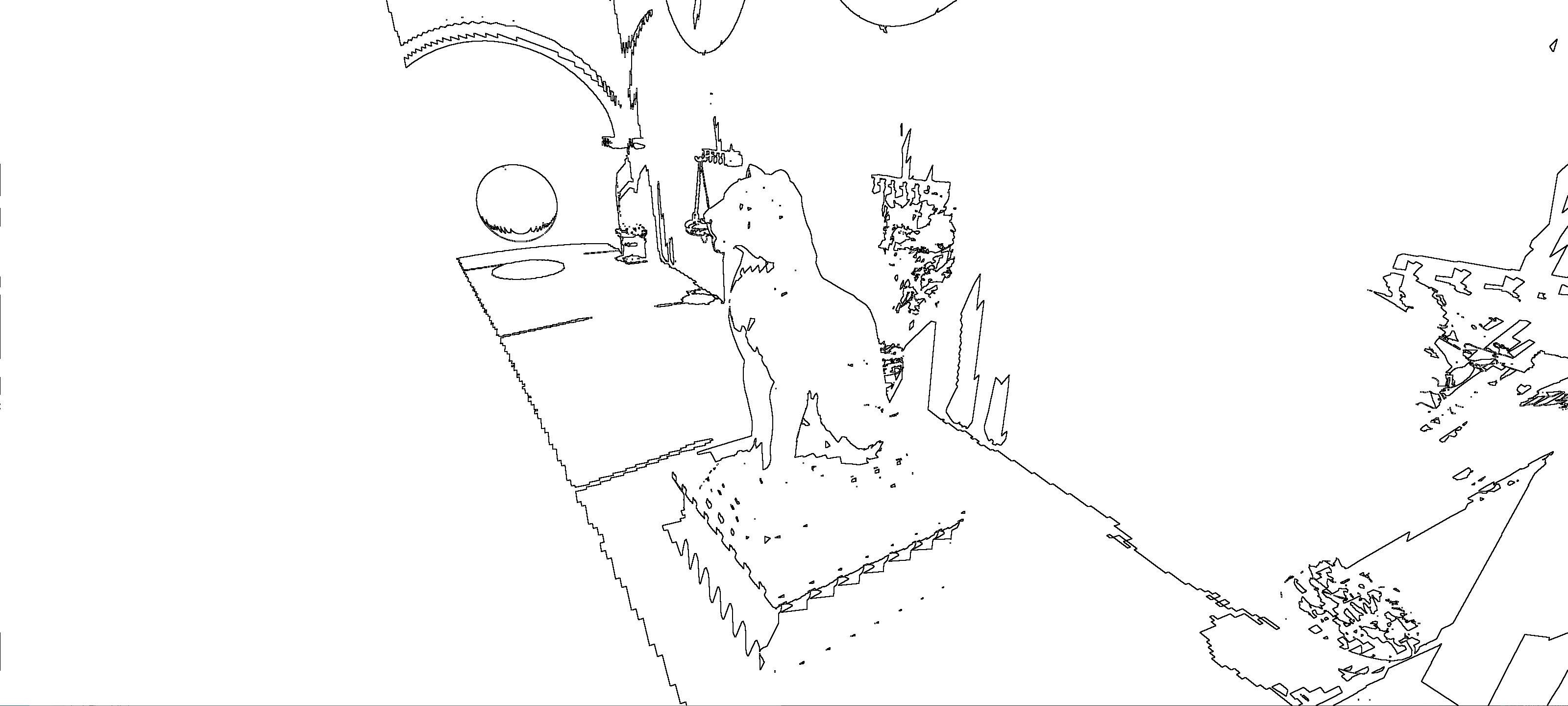

Edge Texture: Sponza
Edge Texture: Sponza

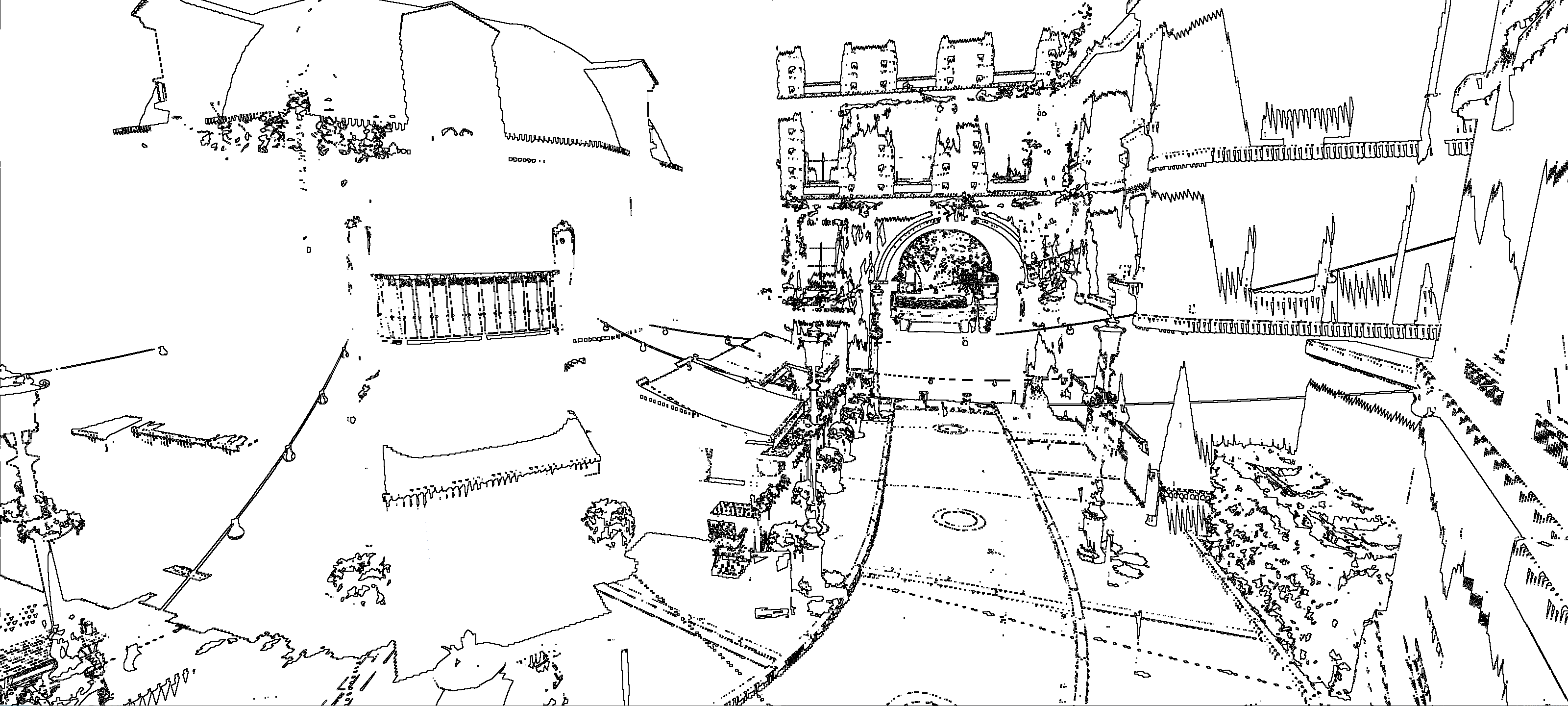

Edge Texture: Bistro Exterior
Edge Texture: Bistro Exterior

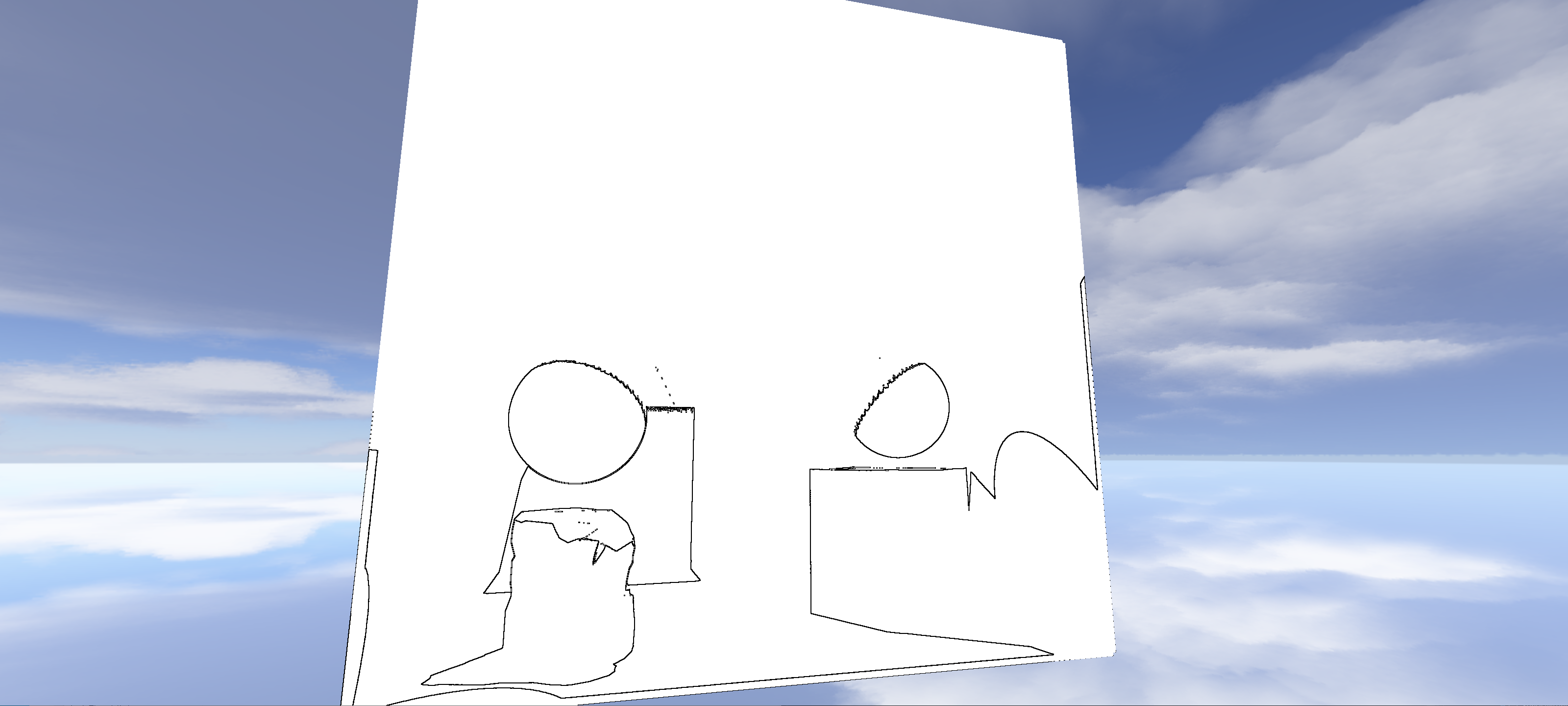

Edge Texture: Cornell Box
Edge Texture: Cornell Box

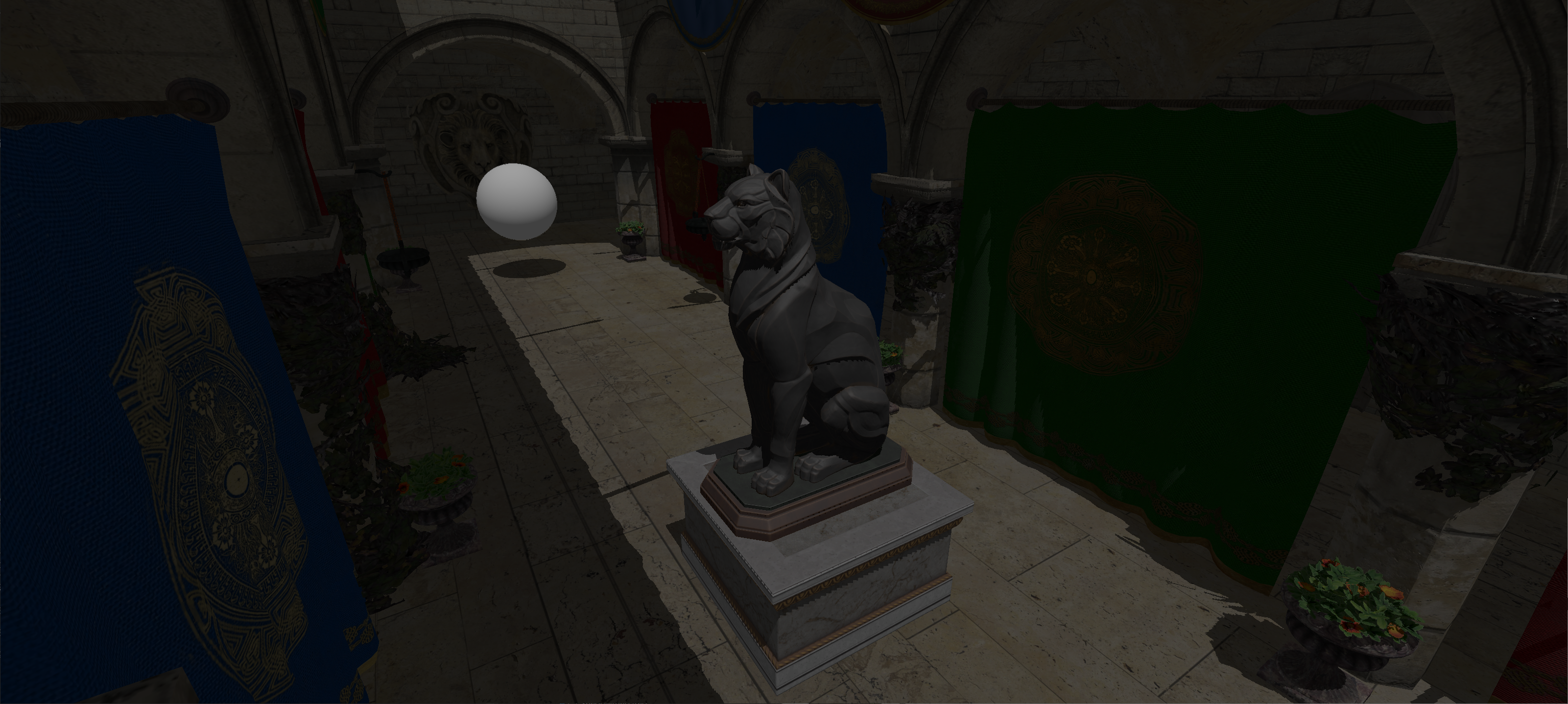

Final Result: Sponza
Final Result: Sponza

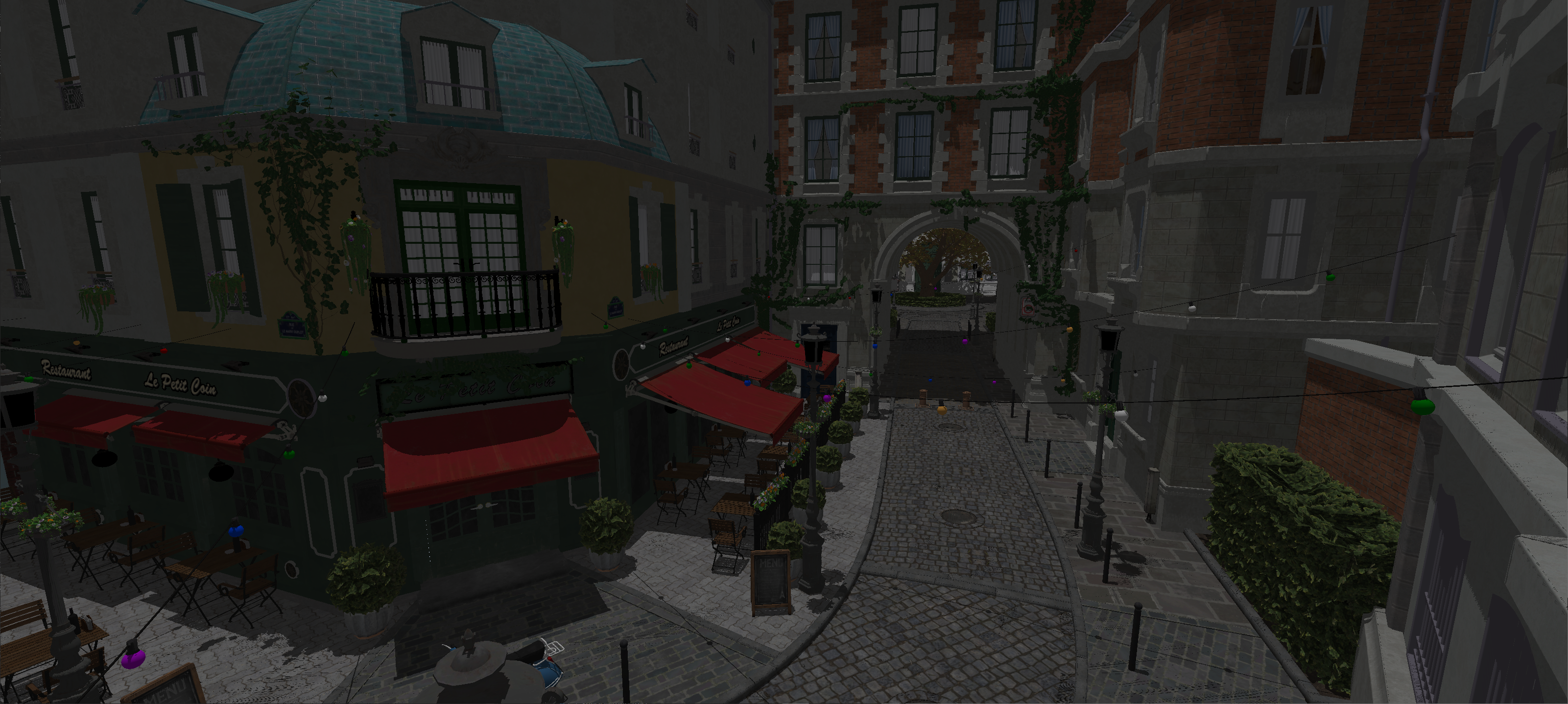

Final Result: Bistro Exterior
Final Result: Bistro Exterior

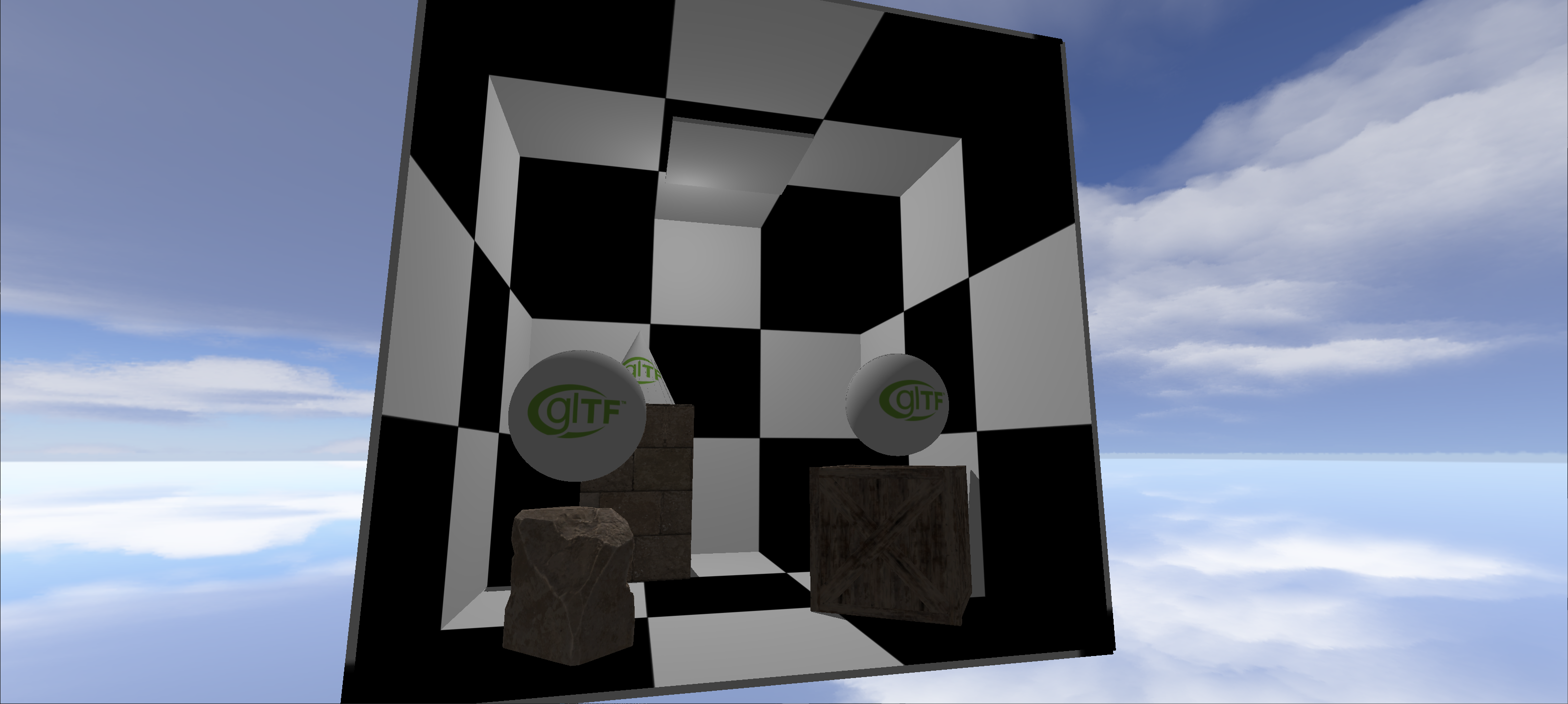

Final Result: Cornell Box
Final Result: Cornell Box
